Product Introduction

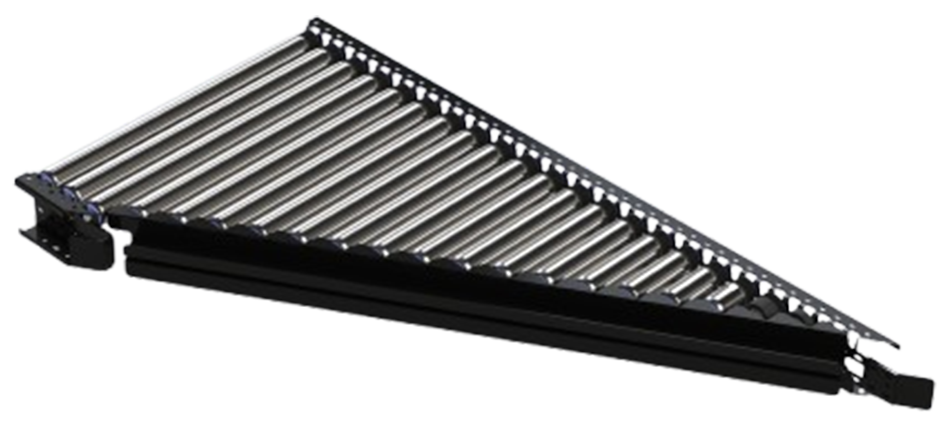

The inclined angle combined diversion conveyor is designed with a roller inclination angle of 30 ° or 45 ° as an auxiliary merging/splitting device (which needs to work in conjunction with the merging/splitting device), by closely connecting with the main conveyor line, items can be merged or split from the main conveyor line to the slow line at a specific angle. This device is suitable for conveying boxes and box shaped items of various materials with flat and regular bottoms.

Application Scenarios

The conveyor line achieves smooth connection during the process of diversion and merging, and the conveying direction can be adjusted for forward and backward conveying. Especially suitable for logistics distribution centers, warehousing centers, and manufacturing processes in industries such as e-commerce, pharmaceuticals, footwear and apparel, supermarket retail, tobacco, electronics, home appliances, food and beverage, and third-party logistics.

Functional Features

Technical Data



Conventional Technical Data	Maximum load capacity of each zone	50 kg
	Conveyor Speed	0.1 to 1.5 m/s
Roller	Roller type	11 Hexagonal
	Roller Diamter	50 mm
	Roller Material	Galvanized Steel
Drive Equipment	Rated Voltage	24 V DC
	Maximum electrical power per zone	0.05 kW
	Drive Mode	5mm PU round belt	PolyVee Belt
LW	Conveyor width	430/530/630/730 Customizable size
TW	Module width	LW+80   mm
CL	Module length	Optional according to P spacing
	Width of side profile	40 mm
a	Angle	30°/45°
P	Roller spacing	60/75mm
