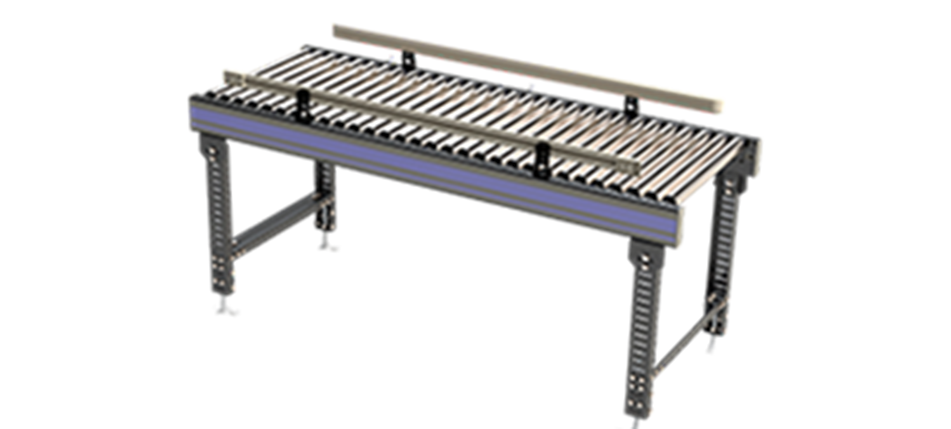

Multi-ribbed belt/O live roller conveyor

Product Introduction

The roller conveyor adopts an electric roller conveying method to provide conveying and zero pressure accumulation, and only requires photoelectric sensors without additional control. The highly modular decentralized drive allows the conveyor line to be freely added, removed, and combined.

Application Scenarios

Suitable for stacking and long-distance linear conveying. Especially suitable for logistics distribution centers, warehousing centers, and manufacturing processes in industries such as e-commerce, pharmaceuticals, footwear and apparel, supermarket retail, tobacco, electronics, home appliances, food and beverage, 3PL, etc.

Functional Features

Simple structure and smooth operation

Multi wedge belt, one belt, one ring transmission, low operating noise

Easy disassembly and maintenance of rollers

Multi wedge with excellent mechanical transmission performance, transmitting large torque

Each unit adopts one driver, which can be combined with any length for energy saving and high efficiency

Electric roller direct drive, avoiding secondary transmission, high energy efficiency

Technical Data

Technical Data		Circular Band	PolyVee Belt
Conventional Technical Data	Maximum Load Capacity Of Each Zone	50 kg	80 kg
	Conveyor Speed	0.1 to 1.5 m/s
Roller	Roller Type	11 Hexagonal
	Roller Diamter	50 mm
	Roller Material	Galvanized Steel
Drive Equipment	Rated Voltage	24 V DC
	Maximum Electrical Power Per Zone	0.05 kW
	Drive Mode	5 mm PU Circular Band	PolyVee Belt
LW	Conveyor Width	430/530/630/730 Customizable Size
ML	Module Length	≤3,000 mm Increase the distance P between the rollers in increments
TW	Module Width	LW+80 mm
	Width Of Side Profile	40 mm
P	Roller Spacing	60/75mm
