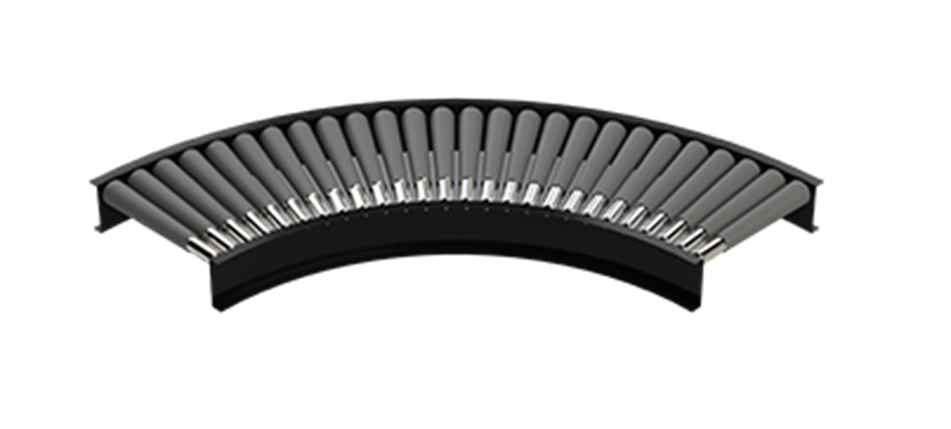

Turning roller conveyor

Product Introduction

The turning drum conveyor is used for 30 ° C processing of heavy-duty box type materials~ 90° The turning and diversion conveyor is easy to connect and transition between the drum lines, and can be combined with multiple conveyor lines and equipment to form complex and diverse logistics conveying systems.

Application Scenarios

Used for turning and reversing the conveying of cardboard boxes or turnover boxes. Especially suitable for logistics distribution centers, warehousing centers, manufacturing processes in industries such as e-commerce, pharmaceuticals, footwear and apparel, supermarket retail, tobacco, electronics, home appliances, food and beverage, 3PL, etc

Structural Characteristics

Simple structure, smooth operation, and low noise

Modular design, easy to assemble and maintain

Functional Features

Fast speed and agile operation

Imported goods from any position may center the goods

Technical Data

Conventional Technical Data	Maximum Load Capacity Of Each Zone	50 kg/m
	Conveyor Speed	0.1 to 1.5 m/s
Roller	Roller Type	11 Hexagonal/Circular Axis (optional)
	Roller Diamter	50 mm
	Roller Material	Galvanized steel with gray conical plastic components
	Maximum number of rollers for conveyor/area	12 pieces(60°)/18 pieces(90°)/6 pieces(30°)/9 pieces(45°)
Drive Equipment	Rated Voltage	24V DC
	Maximum Electrical Power Per Zone	0.05 kW

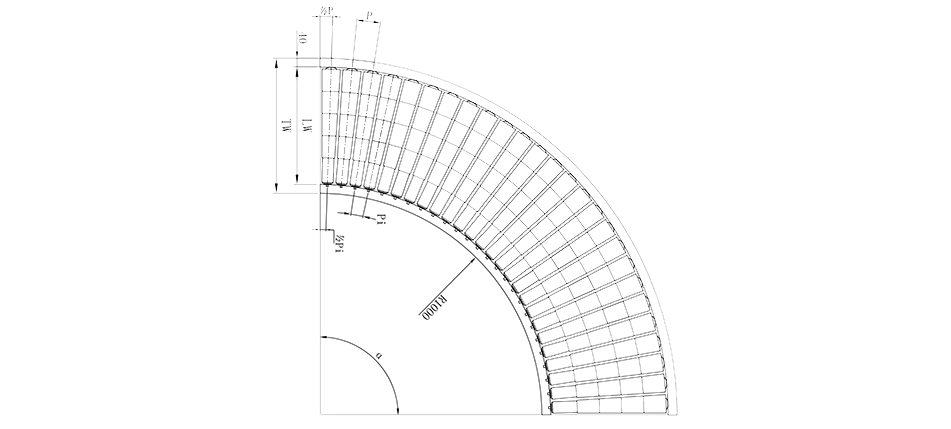

LW	Conveyor Width	430/530/630/730 Customizable Size
TW	Module Width	LW+80mm(Side profile width 40mm * 2)
a	Angle	30°、45°、60°、90°
P	Roller Spacing	60/75mm
