Product Introduction

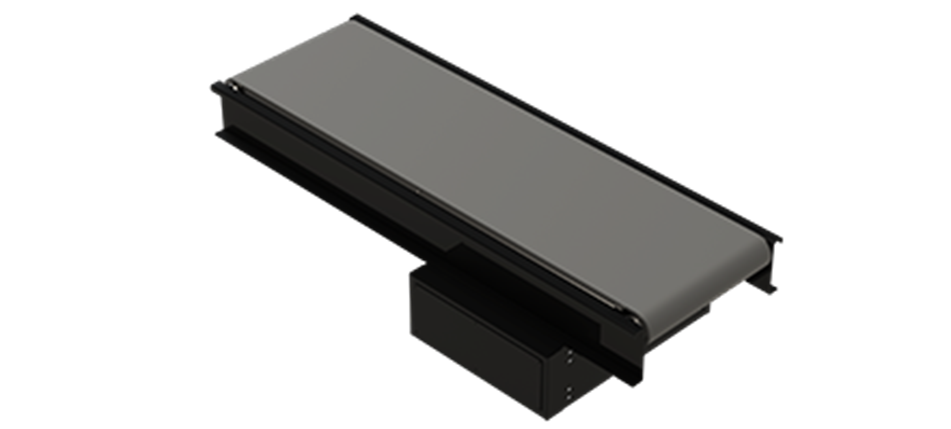

A belt conveyor is a conveyor with a support plate at the lower part of the belt and a driving unit set in the middle, which is centrally driven to make the selection of conveying direction more flexible. The conveying surface of the pallet belt conveyor is supported flat and the conveying is smoother. It can transport various regular and irregular items such as boxes, flat items, packages, and other items that are not suitable for roller conveying.

Application Scenarios

Suitable for logistics distribution centers, 3PL warehousing centers, home appliances, food, medicine, tobacco and other industries for inbound and outbound warehousing, process handling, packaging operations, loading and unloading vehicles and other scenarios

Structural Characteristics

Functional Features

Technical Data





Conventional Technical Data
Maximum Load Capacity	50 kg/m
Maximum Total Load Capacity	550 kg
Conveyor Speed	0.10 to 2 m/s
Drive Equipment
Rated Voltage	230 V/50/60 Hz  400 V
Maximum Electrical Power	0.37-2.2（kW）
Motor Type	Three Phase Reduction Motor
Material
Conveyor Belt	PVC, PVK black belt
Size
LW conveying width	430/530/630/730/ customizable sizes
CL module length	≤3000 mm /customizable
TW module width	LW+80mm
