Belt Curve Conveyor

Product Introduction

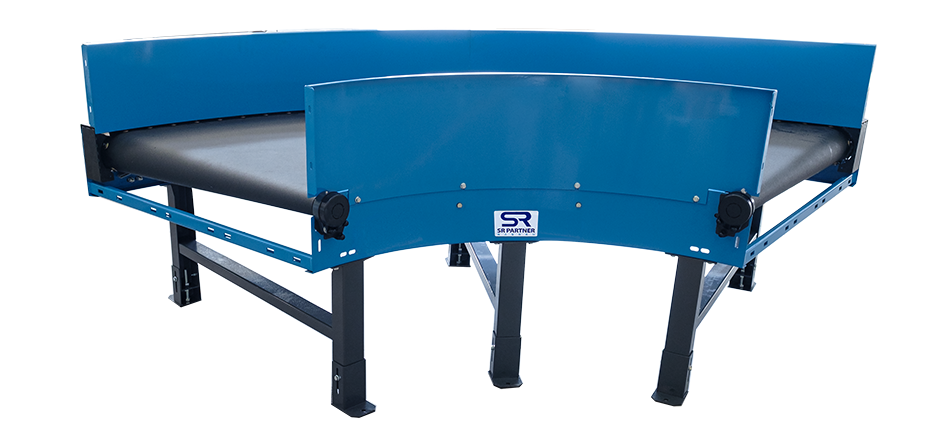

Curved belt conveyor is a type of end driven curved belt conveyor that uses pallet supported belts. The conveying surface is flat and smooth, and it can transport various regular, irregular, box, flat parts, packages, and other items that are not suitable for tube conveying

Product Features

Simple structure and low self weight

Modular design, easy to assemble and maintain

Functional Features

Unique belt guidance system

Can maximize operational reliability and stability

Technical Data

Model	Basic Dimensions	Inner Arc Radius A	Center Radius B	Transport Surface Width F	Drive shaft ring speed 1RPM=MM
The “B”series (carrying width 178-940)
1322M178	C=1500	1322	1411	178	387
1150M350	D=1589	1150	1325	350	363
1000M500	Rack Height=216	1000	1250	500	343
850M650	Axis Standard	850	1175	650	322
750M750	Diameter=30mm	750	1125	750	308
675M825		675	1087.5	825	298
560M940		560	1030	940	282
The "C" series(Transport width 178-1000)
2022M178	C=2200	2022	2111	178	400
1825M375	D=2289	1825	2012.5	375	381
1700M500	Rack Height=216	1700	1950	500	369
1575M625	Axis Standard	1575	1887.5	625	357
1450M750	Diameter=35mm	1450	1825	750	346
1375M825		1375	1787.5	825	338
1200M1000		1200	1700	1000	322
