Indexing Conveyor

Product Introduction

Right angle reversing and stable conveying: The transfer machine is a commonly used conveying equipment in automated logistics systems. The lifting motion adopts a cam linkage method, and the conveying motion adopts a roller and chain method. It is mainly used for conveying various materials carried by pallets, bins, etc., and has a wide range of applications in automated logistics systems.

A gentle branching device for conveying goods is used as a conveying device for gentle handling of goods, without damaging the diversion device of the conveyed goods. It has a completely air free clean design and is an environmentally friendly device that does not require air sources for cleaning and green technology.

Equipped with soft landing system: (Ito Electric's unique stop system without limit switches) Integrated soft stop control technology (unique ITOH DENKI stop technology without limit switches)

Product Features

Transport speed:17·60.90m/min

Processing ability:1,800c/h

Possible weight for transportation:30kg

1. Energy saving: Control the start, stop, and operation of equipment based on the arrival of goods. At the same time, there is no need for a gas source on site, which greatly saves energy.

2. Space saving is achieved by adopting a fully electric mode that does not require an air compressor, achieving a truly comfortable environment with noise reduction and vibration reduction.

3. Based on optimized structural design, an ultra-thin transplanting device with a conveying surface and base height of only 150mm has been achieved. It provides a wide range of applications for low height, segmented conveying, and stacking conveying management.

4. Time saving and easy installation. As it does not change the horizontal height of the goods being transported, there is no need to adjust the horizontal height of the conveyor line entering and exiting. At the same time, the connection of the control part can be easily connected through dedicated connectors

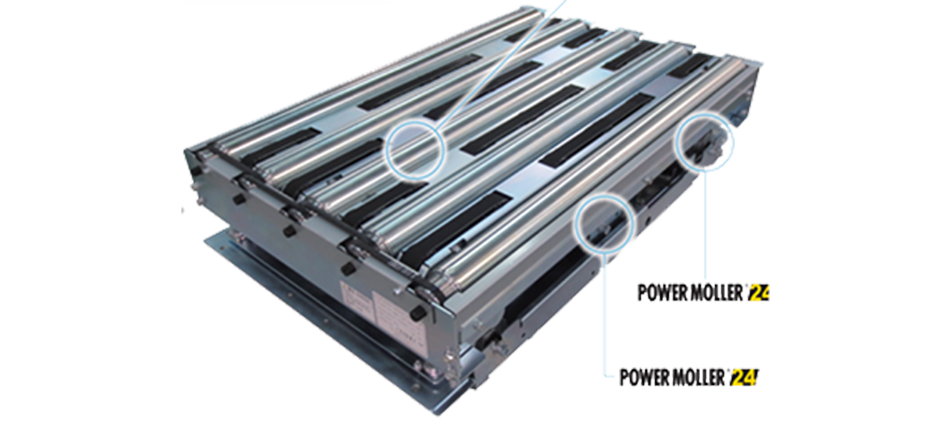

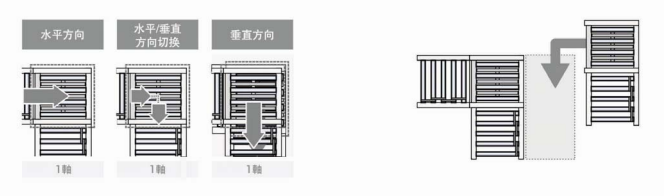

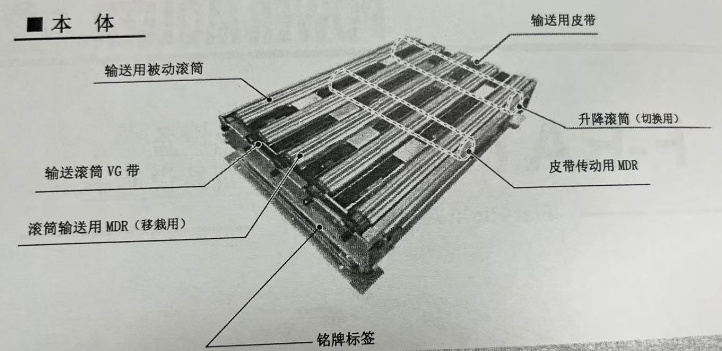

5. The MDR (electric drum) used in F-RAT is achieved through a simple 3-axis structure.

6. The installation of the conveyor line is simple. The conveyor line and the right angle transplanting device are the same unit, so it is possible to simply add a production line.

F-RAT:Transport speed60m/min SIZE BTYPE

G-Transported items:Carton W350XL405mm 30kg

Technical Data

Product Specifications
Outer diameter of drum			φ50mm	Supply Voltage		DC24V±10%
Size	Wide(W)		379,497,597,697mm(optional)	Rated Voltage		DC24V
	长(L)		758mm	Rated Current		0.03A
Body Height			170m	Starting Current		4.0A
Drum Speed			17m/min,60m/min,90m/min(optional)	Wire Diameter	Power Connector(CN1)	0.50~1.5mm《AG:20～14
Lift Section Travel			10mm		Control Connectors(CN2)	0.08~0.5mT(AG:28~20
Use Power Supply			DC24V	Motor Response Time		Below 15msec
Ambient Temperature			0~40℃(No freezing phenomenon)	Protection Function		Miswiring protection/6.3A fuse built-in
Ambient Humidity			90%RH以下(No condensation)	Temperature Protection		Control card 95 ℃, motor 105 ℃
Ambient Atmosphere			Non corrosive gas	Current Limit		4A
Vibrate			Below 0.5G	Ambient temperature		0~40℃(No freezing phenomenon)
Setting up a venue			Indoor	Surrounding humidity		Below 90% RH (No condensation)
Lift light sensor Belt Conveyor Side Light Sensor SN-S		Electric Current	15mA以下	Environment		Non corrosive gas
		Output	Maximum input current：100mA	Vibrate		Below 0.5G
Roller Conveyor Light Sensor SN-R			Applied voltage: below 30V DC (output between -0) Residual voltage: below 2V (input current 100mA)	Place Of Use		Indoor
		Output Action	ON when position detects signal	■CB-016□/CBR-306F 口米口=N (NPN input/output) or P (PNP input/output)
		Wire Diameter	Outside Diameterφ3mm 0.15mm²3specifications
