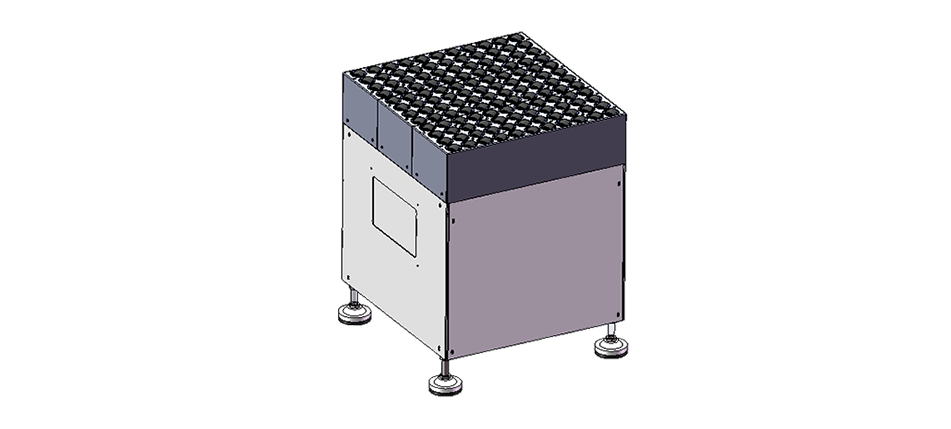

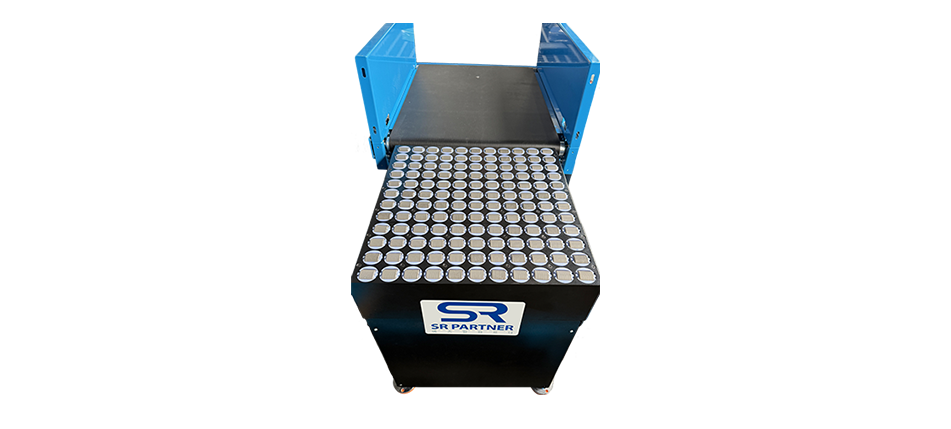

Wheel Sorter

Technical Highlights

Core Parameter: 55mm wheel pitch (vs. market standard 70-100mm).

Practical Value: Handles "small parcels" and "standard items" on a single line, eliminating the need for dedicated small-item equipment and maximizing floor space.

Mechanism: Increased support points from dense rollers ensure balanced force, preventing tilting or jamming of small items.

Metric: Damage rate < 0.01%, ideal for high-value and fragile light parcels.

Performance: Sorting speed ≤2.5m/s, throughput up to 8,000-12,000 PPH(average parcel length:400 mm).

Installation: Modular structure for seamless integration with existing lines without major site modifications.

Technical Parameters

Equipment Length(mm)	668	889	889	1110	1110
Modules	3	4	4	5	5
Equipment Width(mm)	628	738	848	958	1068
Equipment Height(mm)	≥600（Customizable）
wheel pitch	55mm
wheels(pc)	132	208	240	340	380
KW	5.16	7.84	8.8	12.2	13.4
Swivel Angle	0°to 90°(Left and right steerable)
Conveying Speed(m/s)	≤2.5 (Adjustable speed)
Response Time(ms)	≤150
Theoretical Throughput(pc/h)	≤12000(Speed: 2.5m/s; average parcel length:400 mm)
Parcel Types	Cartons, woven bags, soft bags, documents (nonirregular)
Parcel Weight(kg)	≤35KG
Parcel Size Range(LWH mm)	10010030~1000700700
Installation	Floor / Steel Platform
Drive Type	Power Roller / Servo Motor
Power Supply	AC220V/AC380V(optional)
Noise Level	＜62db(distance:1.5m speed:2.0m/s)
Minimum Product Gap	230mm
Operating Environment	Temp. -10~50℃ (cold option -20℃), Humidity 20–80%
