Align conveyor

Product Introduction

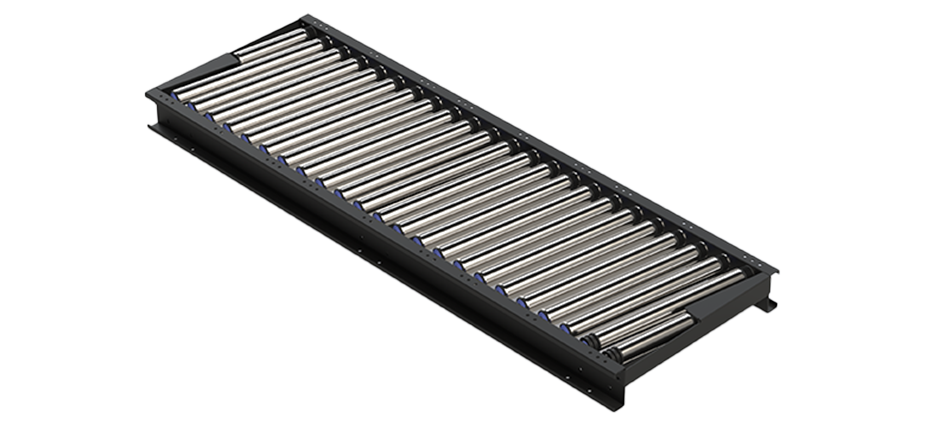

The inclined roller side conveyor uses the friction generated by the contact between the V-belt on the bottom of the roller and the bottom of the roller to drive the roller, thereby driving the goods forward; Due to the inclined installation of the roller, it can guide the conveyed material towards the side, thereby adjusting the forward posture of the conveyed material. The electric roller conveying method provides conveying and zero pressure accumulation, and only requires photoelectric sensors to transport various materials such as boxes, boxes, small trays, etc. with flat and regular bottoms.

Technical Data

Conventional Technical Data	Column 1
Drive	AC deceleration motor (without brake)
	AC380V/3Ph/50Hz
Drive Power	0.37/0.55/0.75/1.1/1.5(kW)
Transmission Mode	Bottom Strip And Multi Wedge Strip
Control Mode	PLC
Drive Direction	L-Motor protective cover on the left side of the conveying direction
	R-motor protective cover on the right side of the conveying direction
Roller material	Galvanized carbon steel/stainless steel
Roller Size	φ50×T1.5(mm)
Roller Slope	10°
Roller Spacing	60/75（mm)
Install	Optional
Lifting	Optional
Connector	Optional
Side frame cover	Optional
Installation Angle	Horizontal installation: Ground flatness error<± 0.5 °
	Slope installation: angle ≤ 15 °
Conveying Direction	Forward and reverse options are available

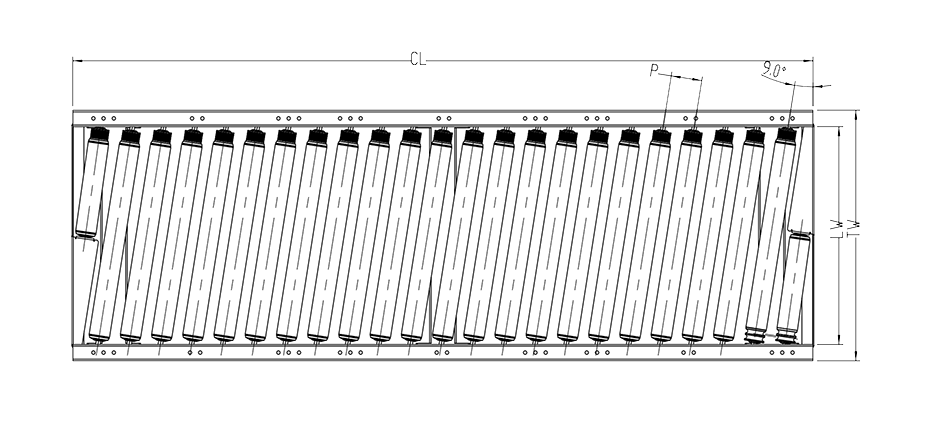

LW	Adjustable conveying width	430/530/630/730 Customizable size
CL	Module Length	≤ 3,000 mm with increasing roller spacing P
TW	Module Width	LW+80 mm
P	Roller Spacing	60/75 mm
	width of side profile	40 mm
