Product Introduction

Non driven linear roller conveyors can manually transport goods or use gravity to transport goods through a drop, greatly reducing the labor intensity of manual operations, and can be used as assembly lines and picking lines.

Application Scenarios

Commonly used in conveying scenarios such as packaging operations and path separation after sorting machines. Especially suitable for logistics distribution centers, warehousing centers, manufacturing processes in industries such as e-commerce, pharmaceuticals, footwear and apparel, supermarket retail, tobacco, electronics, home appliances, food and beverage, 3PL, etc

Structural Characteristics

Functional Features

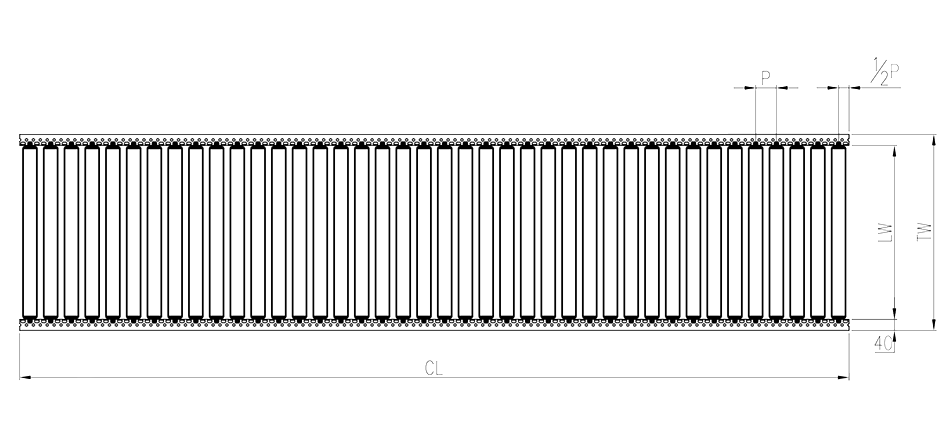

Technical Data



Conventional Technical Data	Maximum Load Capacity Of Each Zone	50 kg/m
Roller	Roller Type	11 Hexagonal
	Roller Diamter	50 mm
	Roller Material	Galvanized Steel
LW	Conveyor Width	430/530/630/730 customizable sizes
CL	Module Length	≤ 3,000 mm with increasing roller spacing P
TW	Module Width	LW+80 mm
P	Roller Spacing	60/75mm
	Width Of Side Profile	40 mm
