Product Introduction

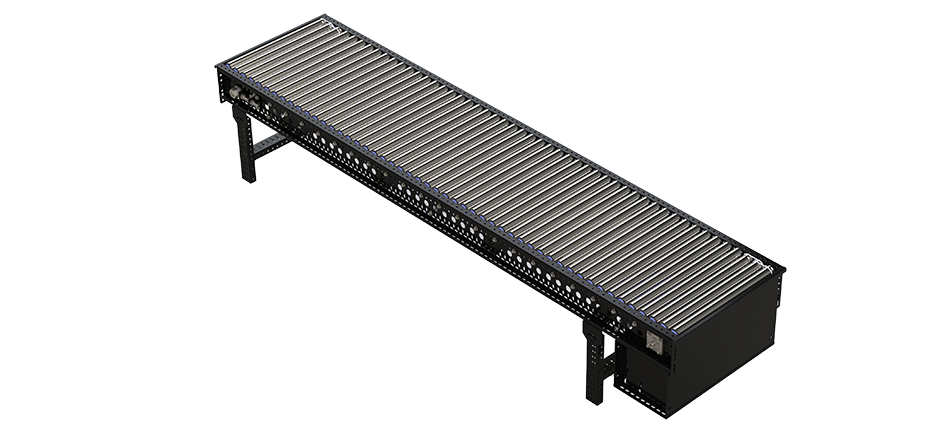

The bottom belt roller conveyor is a linear roller conveyor that uses a V-belt located on the bottom surface of the roller to contact the roller. The motor drives the V-belt on the bottom surface of the roller through the V-belt pulley, and relies on the friction between the V-belt and the roller to drive the roller, thereby driving the goods forward. The V-belt drive design enables the motor to drive more driven rollers, resulting in a more cost-effective conveying solution.

Application Scenarios

Commonly used for long-distance transportation without stacking requirements

Structural Characteristics

Technical Data



Conventional Technical Data	Maximum Load Capacity Of Each Zone	50 kg
	Conveyor Speed	0.1 to 2 m/s
Roller	Roller Type	11 Hexagonal
	Roller Diamter	50 mm
	Roller Material	Galvanized Steel
Drive Equipment	Rated Voltage	380 V DC
	Maximum Electrical Power Per Zone	0.75 kW
	Drive Mode/Type	V-belt/AC reduction motor

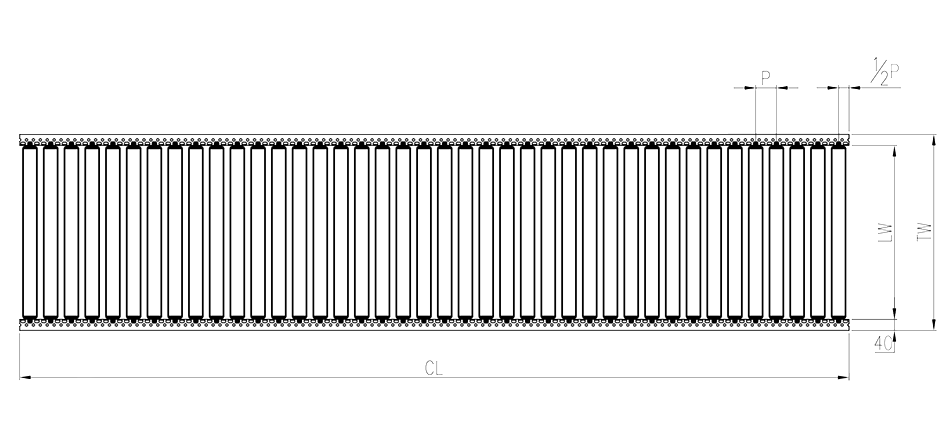

LW	Conveyor Width	430/530/630/730 customizable sizes
ML	Module Length	≤6,000 mm with increasing roller spacing P
TW	Module Width	LW+80 mm
P	Roller Spacing	60/75mm
SP	Width Of Side Profile	40 mm
