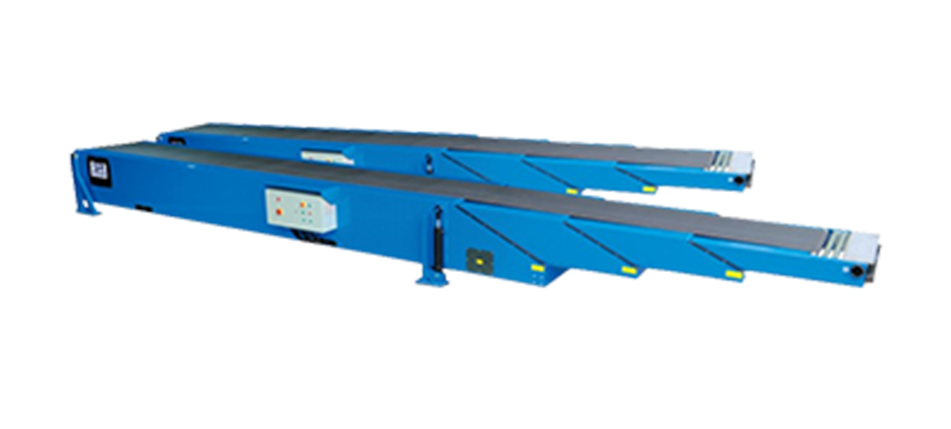

Telescopic Belt Conveyor

Product Introduction

The telescopic belt conveyor provides safe and efficient loading and unloading. Its biggest advantage is that it conforms to ergonomic operating conditions. With a single operating lever or button, the belt telescopic conveyor can reach any position required by the operator, and through any telescopic movement, the goods can be easily and efficiently loaded and unloaded. The entire extension or retraction action is quickly responded to by electric feedback to the operator. Users can choose our product model based on the length of the carriage, or contact our sales team for reasonable suggestions.

Functional Features

The operation of the belt shrinking machine conforms to ergonomics

50% reduction in unloading time, fast loading/unloading - up to twice the speed of manual handling

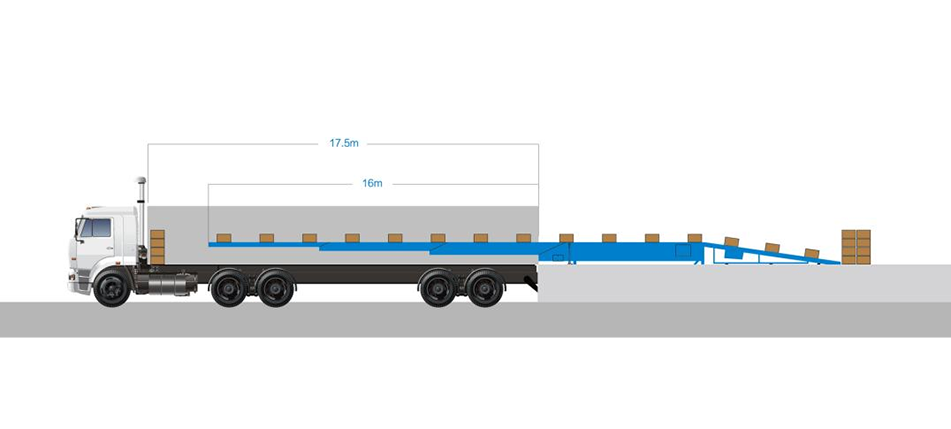

Suitable for loading and unloading goods in various truck compartments

Goods that are easy to operate, safe, and reliable to transport

Rated load 50-100kg/m

Easy and fast maintenance and upkeep

Technical Data

Model	Basic part L1		Extension part L2	Total length L	Height A	Total width B	Belt width C
Three Links
RD T32.5/2.7		2500	2700	5200	555	C+345	600 or 800
RD T33/4		3000	4000	7000	555	C+345	600 or 800
RD T34/5.4		4000	5400	9400	555	C+345	600 or 800
RD T34.5/6		4500	6000	10500	555	C+345	600 or 800
RD T35/7		5000	7000	12000	555	C+345	600 or 800
RD T36/8.4		6000	8400	14400	555	C+345	600 or 800
Four Sections
RD T44/7		4000	7000	11000	525	C+390	600 or 800
RD T45/10		5000	10000	15000	525	C+390	600 or 800
RD T46/12.3		6000	12300	18300	525	C+390	600 or 800
RD T47/15		7000	15000	22000	755	C+390	600 or 800
RD T475/16		7500	16000	23500	755	C+390	600 or 800
Section 5
RD T56/16		6000	16000	22000	850	W1+440	600 or 800
RD T57.5/21		7500	21000	28500	850	W1+440	600 or 800
